New and Robust Analytical and Prep LC Method for Cannabinoid Quantitation and Purification

Download PDF August 11, 2022


Potency testing is routine and boring, but cannabis and hemp companies rely on it for business decisions and financial security. As with most things in the cannabis and hemp space, the analytical services companies repurposed off the shelf technology for quick monetary gains with little thought to how the products would actually be used. For potency testing, simple C18 HPLC columns were pushed out into the marketplace with hasty application notes demonstrating efficacy. However, in practice, its not that simple. The C18 phase needs help to resolve the various cannabinoids and that help comes in the form of mobile phase additives like formic acid and ammonium formate. These additives are critical to the separation, identification, and quantitation companies need, but subtle changes in the amounts of these additives, either from an error by the technician or the evaporation of the solvents, can lead to erroneous results. What we will show in this poster is an analytical method for potency testing that does not require mobile phase additives. This will save time and money for analytical testing labs, reduce errors, and allow for extraction and manufacturing companies to add inhouse testing with reduced risk or need of a skilled chromatographer. The secondary goal is to show that this method transfer to prep scale without modification. If a company is using prep LC or flash LC, the incorporation of this stationary phase will simplify the purifications or THC remediation.


The cannabinoid standard consisting of the cannabinoids shown in figure 1 was obtained from Cayman Chemicals. A chiral column from Chiral Technologies was used for the separation using water and acetonitrile or methanol. The quaternary HPLC with a UV detector was used for the analysis.

Figure 1 10 cannabinoid structures



The 10 cannabinoids are separated and identified in less than 17 minutes as shown in figure 2. This isocratic method included 0.1% TFA.

Figure 2 Chromatogram of the 10 cannabinoids
Figure 3 Additive free separation

Figure 3 shows the additive free conditions provide good separation of the 8 cannabinoids, although it can be optimized further. It also allows for the easy scale up to Prep for purification of CBD or other cannabinoids.

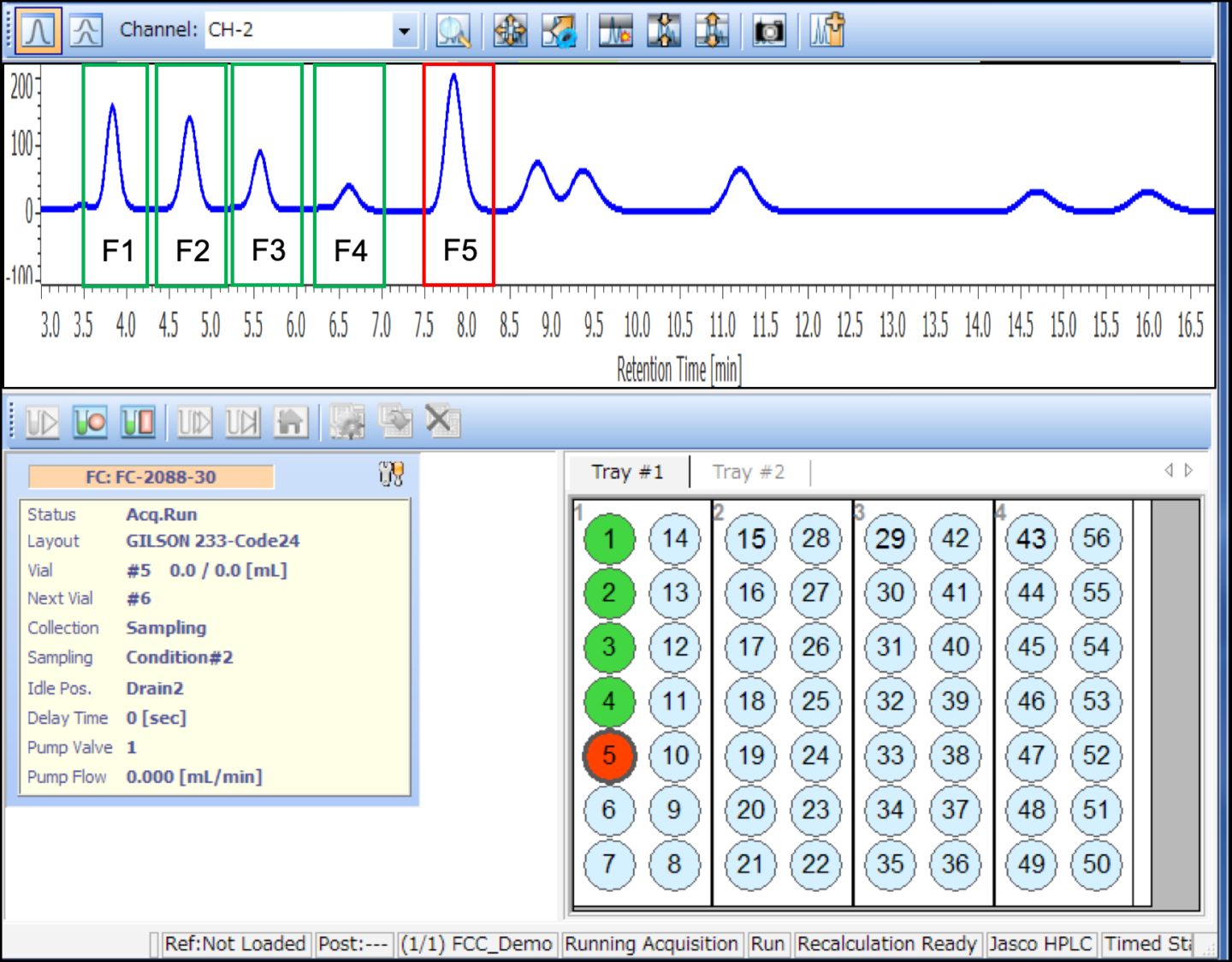

Figure 4 Preparative purification

The preparative purification is shown in Figure 4. Multiple cannabinoids were collected for individual analysis for purity. The resulting fractions show 100% purity as shown in the fraction chromatogram in Figure 5.


In the future we plan to add additional cannabinoids and further develop the separation without TFA. We will also optimize the TFA separation and incorporate a mass spectrometer to/ evaluate the possibility of running  terpenes.




DJ Tognarelli1, Chris Denicola2, Weston Umstead3

1 JASCO Incorporated, Easton, MD
2 Prism Sciences, Morrison, CO
3 Chiral Technologies, West Chester, PA

Special thanks to Alex Gulbrandsen andHayden Dropik for their help in the lab. ​

email: [email protected]

About the Author

DJ Tognarelli received his B.S. from the University of Richmond where he studied Analytical Chemistry. He is a Chromatography Applications Scientist at JASCO.
