IRT-1000X
IRT-5200
IRT-7100
IRT-7200

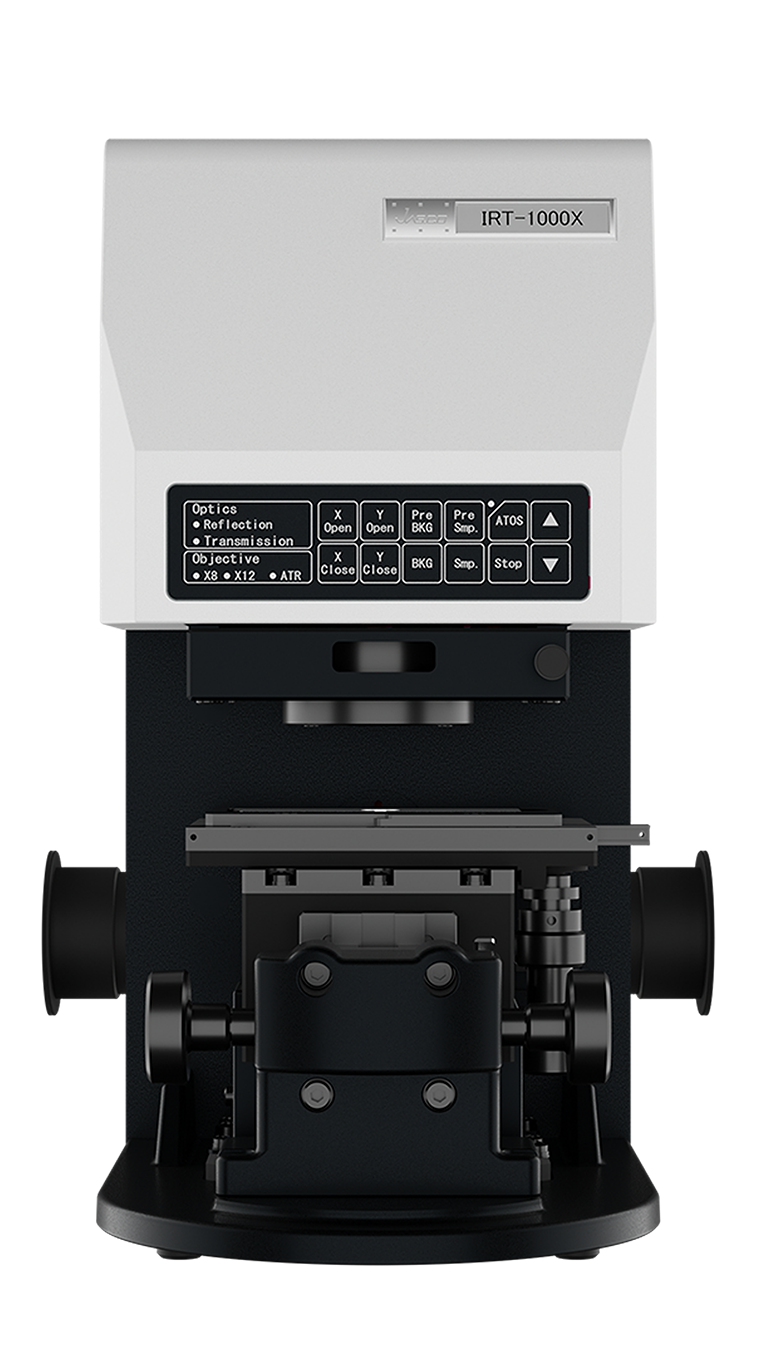

A micro-sampling accessory designed for easy measurement of micro-sized samples. JASCO has successfully integrated the essential functions of an IR microscope into the compact body of the IRT-1000X, resulting in a small, lightweight, and cost-effective solution. The IRT-1000X can be easily mounted in the sample compartment of an FTIR main unit, just like other standard IR accessories.

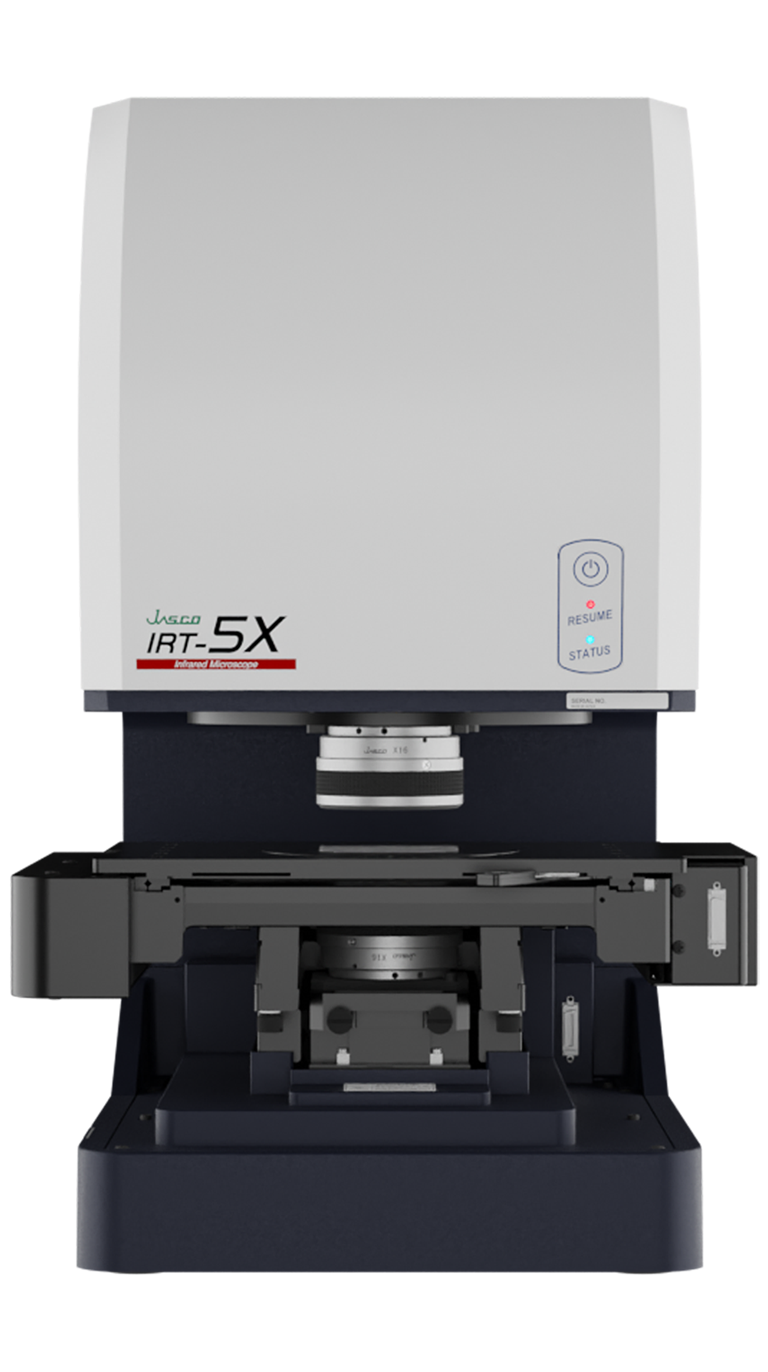

The IRT-5200 FTIR microscope includes a high-sensitivity mid-band MCT detector, a second detector can be added as option. IQ Mapping allows single-point, multi-point, line, area, and ATR mapping measurement without moving the sample stage. An optional automatic XYZ stage provides auto-focus and mapping or imaging analysis of larger sample areas.

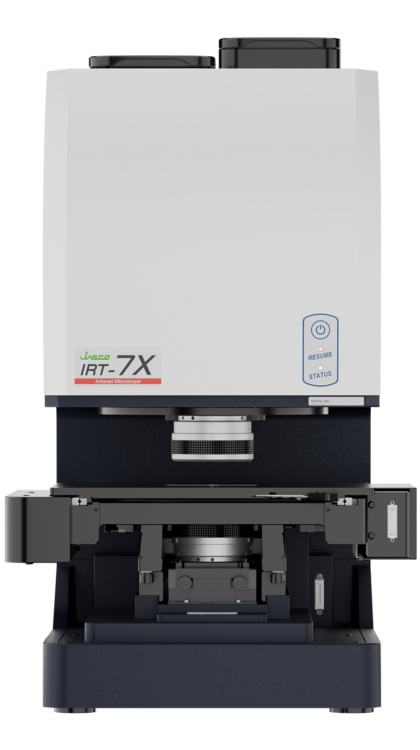

The IRT-7100 fully automated FTIR microscope includes a standard single-point mid-band MCT detector, with the option to simultaneously install up to two detectors including a 16-channel linear array detector (field upgradeable). The standard automatic XYZ sample stage and IQ Mapping function provides comprehensive wide area mapping and multi-ATR mapping.

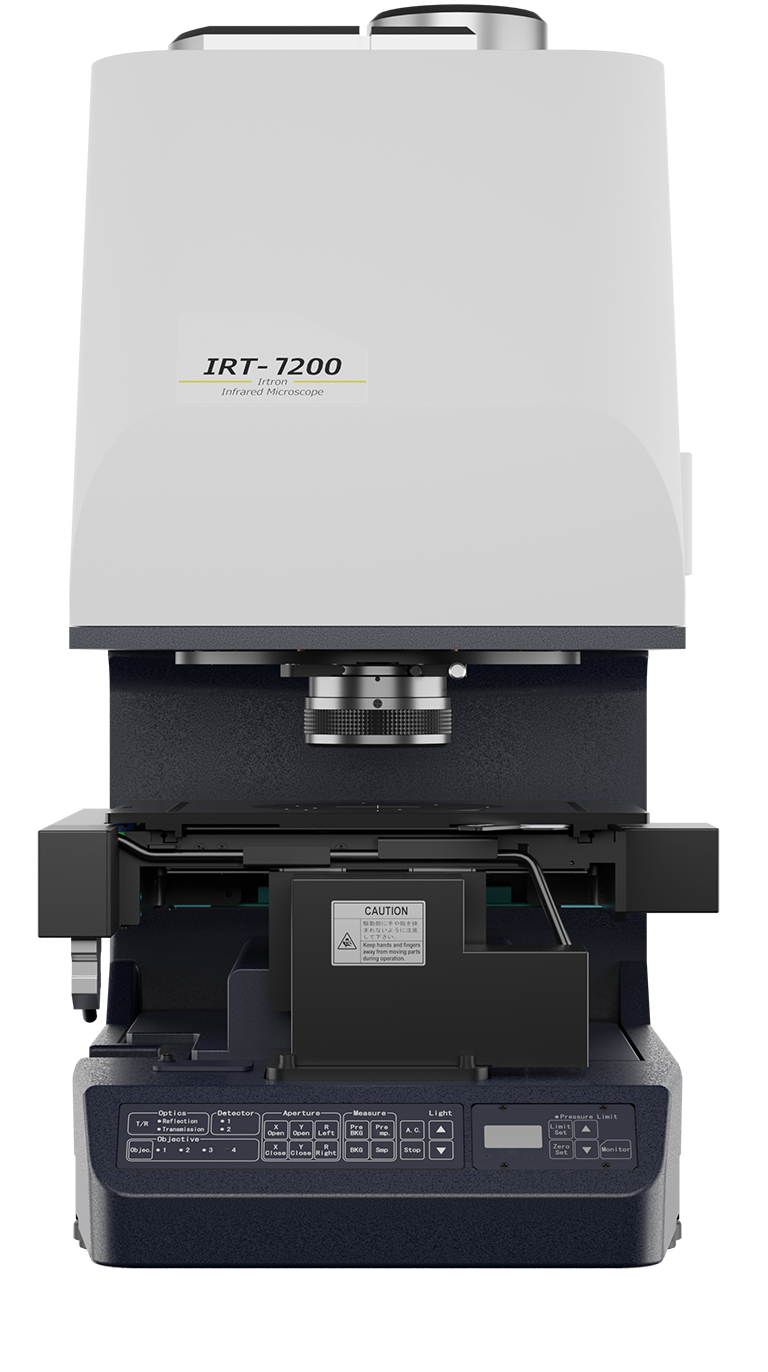

The IRT-7200 Linear Array FTIR Imaging microscope includes two detectors as standard: a 16-channel linear array detector and a single-point mid-band MCT detector. The combination of the standard automatic sample stage and IQ Mapping allows very fast mapping and imaging of larger sample areas, multi-area ATR mapping, and IR imaging of a specified area with extremely high spatial resolution and excellent sensitivity in a short time.
Standard Detectors
Used detectors included in the bench
Single-element mid-band MCT
(7,800 – 600 cm-1)
Single-element mid-band MCT
(7,800 – 600 cm-1)
Single-element mid-band MCT
(7,800 – 600 cm-1)
1 x 16 element Linear Array MCT
(7,000 – 650 cm-1)
—
Dual Detector Capability
Dual Detector Capability
Standard Dual Detectors
Optional Detectors
—
N-MCT, M-MCT, W-MCT, InSb, InGaAs, Linear Array MCT
N-MCT, W-MCT, InSb, InGaAs, Linear Array MCT
N-MCT, W-MCT, InSb, InGaAs
Measurement Methods
Transmittance, Reflectance and ATR
Transmittance, Reflectance, ATR, RAS
Transmittance, Reflectance, ATR, RAS
Transmittance, Reflectance, ATR, RAS
Mapping
Single Point
Single Point, Multi-point, Line, Grid, and Micro-ATR Mapping Measurement
Single Point, Multi-point, Line, Grid, and Micro-ATR Mapping Measurement
Single Point, Multi-point, Line, Grid, and Micro-ATR Mapping Measurement
—
IQ Mapping
(Depends on objective, up to 1.6 x 1.6mm example 400 x 400 µm – with x16 Cassegrain)
IQ Mapping
(Depends on objective, up to 1.6 x 1.6mm example 400 x 400 µm – with x16 Cassegrain)
IQ Mapping
(Depends on objective, up to 1.6 x 1.6mm example 400 x 400 µm – with x16 Cassegrain)
—
Wide Area Mapping
(10 x 7.5 cm)
Wide Area Mapping
(10 x 7.5 cm)
Wide Area Mapping
(10 x 7.5 cm)
—
—
High Speed Mapping
(10 data/sec)
High Speed Mapping
(10 data/sec)
—
—
High Speed, High Resolution Mapping
(160 data/sec)
High Speed, High Resolution Mapping
(160 data/sec)
Standard Components
Manual XYZ Stage
Movable distance: X: 45, Y: 20, Z: 12 mm
Manual XYZ Stage
Movable distance: X: 70, Y: 50, Z: 20 mm
Upgradable to Auto XYZ Stage
Auto XYZ Stage
Movable distance: X: 100, Y: 75, Z: 25 mm, 1 μm step
Auto XYZ Stage
Movable distance: X: 100, Y: 75, Z: 25 mm, 1 μm step
1-Objective Carousel
Control Panel
CCD Camera
4-Objective Carousel
Control Panel
CMOS Camera
4-Objective Carousel
Control Panel
CMOS Camera
4-Objective Carousel
Control Panel
CMOS Camera
Purge
Purge case
Microscope purge (standard)
Sample stage purge-case (option)
Vacuum (option)
Microscope purge (standard)
Sample stage purge-case (option)
Vacuum (option)
Microscope purge (standard)
Sample stage purge-case (option)
Vacuum (option)
Optional Components
Pressure sensor (with LCD pressure monitor)
Demountable cell for transmission measurement
Powder measurement holder
Joystick for Auto XYZ Stage
Pressure Stage
Required for ATR Objectives
Joystick for Auto XYZ Stage
Pressure Stage
Required for ATR Objectives
Joystick for Auto XYZ Stage
Pressure Stage
Required for ATR Objectives
Standard Objectives
8x Cassegrain
16x Cassegrain (Aluminum)
16x Cassegrain (Aluminum)
16x Cassegrain (Aluminum)
32x Cassegrain (Aluminum)
Optional Objectives
—
Cassegrain Objectives
Gold (Au): 10x, 16x, 32x
Aluminum (Al): 10x, 32x
Cassegrain Objectives
Gold (Au): 10x, 16x, 32x
Aluminum (Al): 10x, 32x
Cassegrain Objectives
Gold (Au): 10x, 16x, 32x
Aluminum (Al): 10x
—
Refractive Objectives
4x, 10x, 20x
Refractive Objectives
4x, 10x, 20x
Refractive Objectives
4x, 10x, 20x
ClearView ATR Objectives
ATR-1000-SS
(Zinc Sulfide)
ATR-1000-SD
(Diamond)
ATR-5000-SS
(Zinc Sulfide)
ATR-5000-SD
(Diamond)
ATR-5000-SG
(Germanium)
ATR-5000-SS
(Zinc Sulfide)
ATR-5000-SD
(Diamond)
ATR-5000-SG
(Germanium)
ATR-5000-SS
(Zinc Sulfide)
ATR-5000-SD
(Diamond)
ATR-5000-SG
(Germanium)
Wide-Area ATR Objectives
—
ATR-5000-MG
(Germanium)
ATR-5000-WG
(Germanium)
ATR-5000-MG
(Germanium)
ATR-5000-WG
(Germanium)
ATR-5000-MG
(Germanium)
ATR-5000-WG
(Germanium)
Projection Type ATR Objectives
—
ATR-5000-G45
(Germanium)
ATR-5000-G45
(Germanium)
ATR-5000-G45
(Germanium)
Conventional Type ATR Objectives
ATR-1000-VZ
(Zinc Selenide)
ATR-1000-VG
(Germanium)
ATR-5000-Z
(Zinc Selenide)
ATR-5000-D
(Diamond)
ATR-5000-G
(Germanium)
ATR-5000-Z
(Zinc Selenide)
ATR-5000-D
(Diamond)
ATR-5000-G
(Germanium)
ATR-5000-Z
(Zinc Selenide)
ATR-5000-D
(Diamond)
ATR-5000-G
(Germanium)
Dimensions
587 (H) × 302 (W) × 695 (D) mm
54 kg
587 (H) × 302 (W) × 695 (D) mm
54 kg
613 (H) × 302 (W) × 695 (D) mm
56 kg
613 (H) × 302 (W) × 695 (D) mm
56 kg
Power Consumption
AC 100-240 V, 50/60 Hz, max. 60 VA
AC 100-240 V, 50/60 Hz, max. 60 VA
AC 100-240 V, 50/60 Hz, max. 75 VA
AC 100-240 V, 50/60 Hz, max. 75 VA
