Temperature Control – Melting

ETCS-761/762 Peltier Thermostatted Single Position Cell Holder (Water-Cooled)

These cell holders use the Peltier effect to precisely maintain the sample temperature. The cell holders include a stirrer for uniform cell temperature. The ETCS-761 and ETCS-762 cell holders are water cooled Peltier accessories for a greater temperature range.

OPS-512 Optional Temperature Sensor for EHCS-760
OPS-512 OP sensor for direct temperature measurement in the sample cell for both the ETCS-761 or ETCS-762.

Specifications

Thermostatted Cell10-mm rectangular cell (sample side only – ETCS-761)
10-mm rectangular cell (sample/reference – ETCS-762)
Temperature control systemHeating/cooling system using Peltier effect
Heat radiating systemWater cooled
Stirring systemMagnetic stirrer (variable speed)
Temperature setting range-10 to 110°C
Temperature control range0 to 100°C (for room temperature = 20°C)
Temperature control accuracy±0.1°C
Temperature accuracy(Difference between displayed and actual cell temperature)
20°C to 40°C ± 0.5°C
± 1°C when the set temperature is outside the above range
Temperature setting difference(Difference between set temperature and displayed temperature)
20°C to 40°C ± 0.3°C
± 0.5°C when the set temperature is outside the above range

ETCS-761
ETCS-761
ETCS-762
ETCS-762

PWC-758 Automatic 8 x 8-Position Peltier Cell Changer (Water-Cooled)

The PWC-758 is a multi-cell sample holder accessory for the simultaneous measurement of up to eight sample cells and 8 reference cells. The Peltier temperature control allows precise control of the sample temperature. A magnetic stirrer is used to maintain a uniform cell temperature for all 16 cell positions.

Cannot be used with the V-630 or V-730 (including bio versions)

Specifications

Thermostatted cell(s)Eight 10-mm path length rectangular cells (sample and reference side)
Temperature control systemHeating/cooling system using Peltier effect
Heat radiating systemWater cooled
Stirring systemMagnetic stirrer (with variable speed control)
Temperature setting range-10 to 110°C
Temperature control range0 to 100°C (room temperature = 20°C)
Temperature setting precision±0.3°C
Temperature accuracy(Difference between displayed and actual cell temperature)
20°C to 40°C ±0.5°C
±1°C when the set temperature is outside the above range


PAC-743R Automatic 6/8-Position Peltier Cell Changer (Water-Cooled and Water-Cooled with Thermostatted Reference)

The PAC-743 and PAC-743R automatic 6/8-Position Peltier cell changers are used for temperature controlled transmittance and absorbance measurements with multiple sample cells, with a variable temperature range from 0 to 100ºC.

Three cell block types are available: a 6-position 10 mm cell block, an 8-position micro cell block and an 8-position 5 mm cell block.

Using the 8-position micro cell block up to 8 samples can be simultaneously transferred directly from a 96 micro-titer plate (8×12) using an 8-way micro-pipette.

The PAC-743R also includes a temperature controlled reference position.

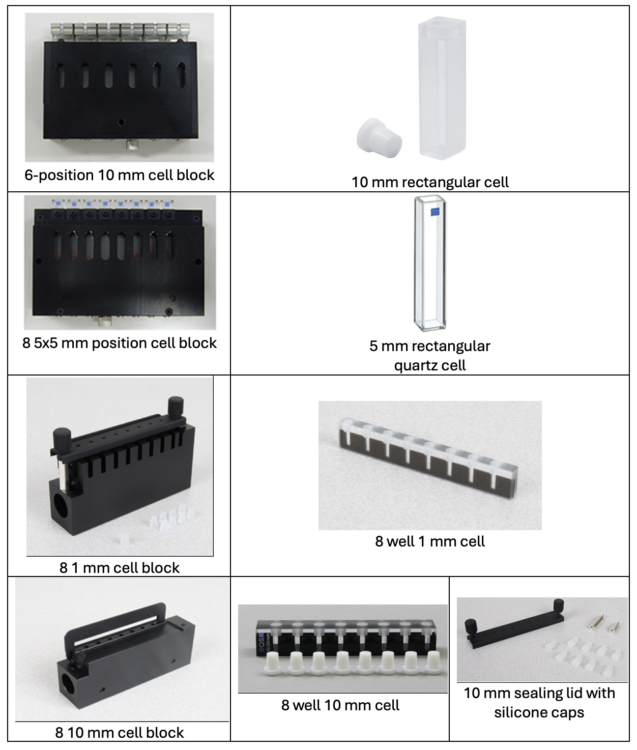

Cells for PAC-743/743R

5 mm rectangular
quartz cell
6-position cell block
8 position cell block
8 position micro-cell block
Micro 8-position micro-cell
